Lightest 4x4 Winch
The 12K winch, synthetic rope, control box, mounting bolts & fairlead weigh a total of 23.45kg
6.2HP Motor with 216:1 Gear Ratio
The reliable 6.2HP motor and tough 3 stage planetary gearbox will get you back on your journey.
IP68 Waterproof
Stress free river crossings and mud runs due to a newly upgraded rating of IP68.
Carbon Winches Warranty
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Black Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Red Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Orange Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Green Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Blue Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Black Rope & Yellow Hook V3
$804.00
$877.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch V2 - 24V
$986.00
This is a listing for a 24 Volt Carbon Winch. Please confirm you need 24 volt before placing your order.
Carbon Winches was designed and engineered by an Australian Offroad Business KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability and toughness being tested in some of the harshest environments in Australia and overseas including Iceland and the Middle East.
Many other products on the market simply didn't cut it in the Australian Outback including some very popular world renowned brands so we built our own. Now is the time to show the world the quality and reliability we have developed.
Designed by Australian offroad business for our harsh Aussie and international conditions

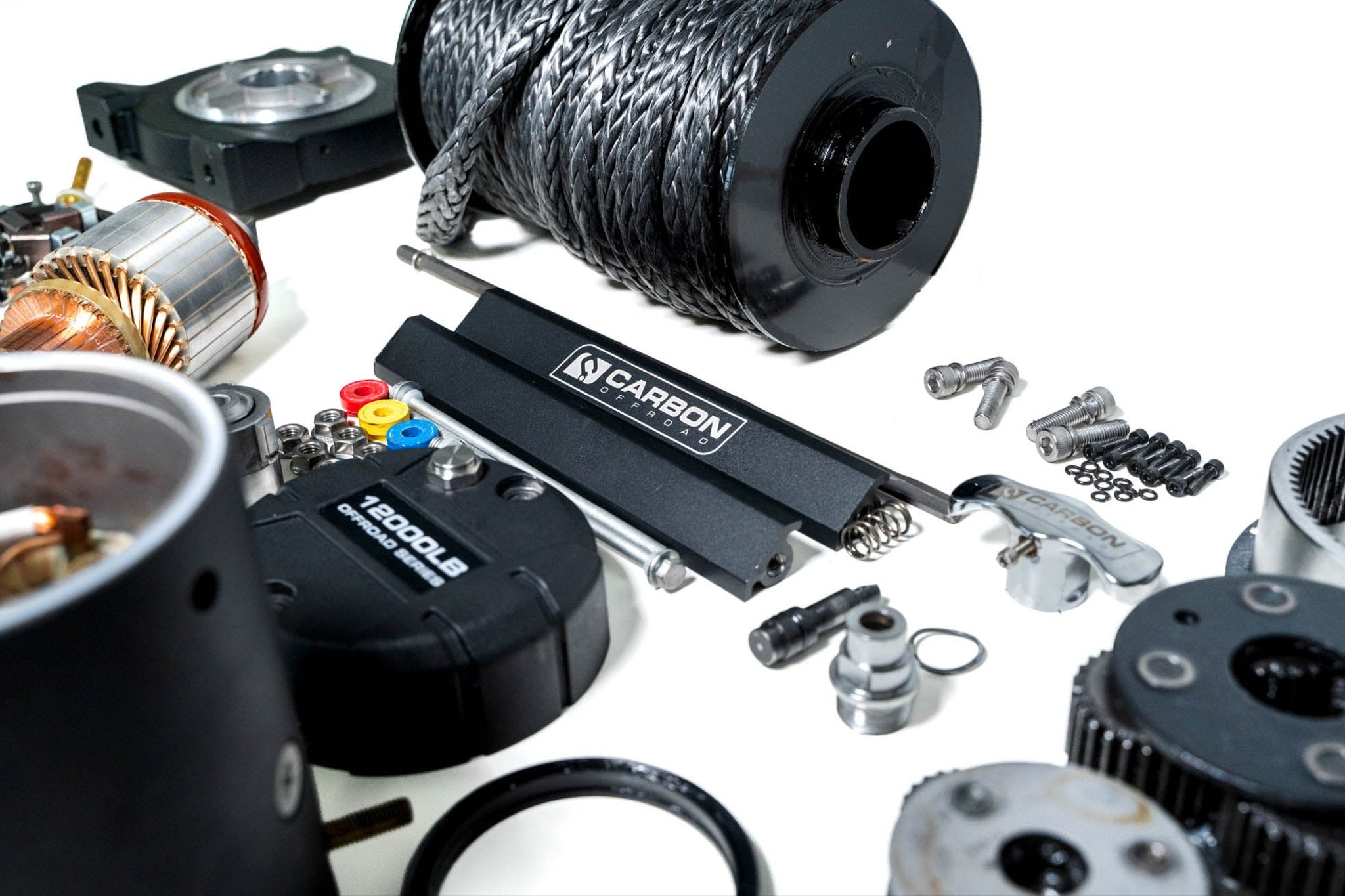

Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms.
12000lb fast line pull 216:1 planetary gearset ratio
6.2HP series wound electric motor
5 position solenoid box mounting bracket
Battery Isolator Switch
Wireless remote control unit with lanyard- FULLY SEALED RECIEVER UNIT built into the control box.
Rotating ring gear clutch for easy low drag freespool
Electroplated planetary gearsets for long life
Breather kit pre-fitted to the electric motor
Multi Fit Fairlead no need to worry about which suits you bullbar! Simply install as standard fitment or flip over to offset the rope outlet by 20mm.
All internals fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mount.
Bearing supported fully balanced armature for superior performance.
Hoist style brake unit mounted to the drum endplate provides superior holding power by braking through the geartrain with no heat generated on drum. No contact to drum no damage to synthetic rope.
4 position mounting for the control box bracket over the motor or over the drum on top for flat mounting plates or on front of winch for top mounting control box when winch is mounted vertically. Alternatively 700mm cables allow remote mounting of the control box separately to the winch.
NO FUSS WARRANTY -
5yr Water Ingress Warranty
5 year electrical warranty on motor / solenoid unit
Limited lifetime gear train warranty
Supported worldwide from Australia.
All winches are tested for full function and load prior to packing. We guarantee your winch will be 100% fully operational upon arrival.
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. The main features include:
? 6.2 HP Series Wound motor ? 216:1 ratio 3 stage planetary gearbox ? Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum ? (No heat build up on drum) ? Rotating ring gear freespool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues. ? Power in and power out via a plug in hand remote or a wireless remote controller. Remote controller has auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water. ? 500amp sealed solenoid unit and wired handle remote control and wireless remote control unit
SPECIFICATIONS Part number: CW-12K_24V Rated line pull: 12000 lbs, (5450 kg) single-line Motor: 24V DC series wound motor Remote Control: Remote Switch, 12? (3.7m) lead. Wireless Remote Control: Included Geartrain: 3-Stage Planetary. Gear Ratio: 216:1 Clutch (freespooling): Rotating Ring Gear Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum. Drum Diameter/Length: 2.5??/8.8?? (64mm/224mm) Synthetic Rope: 24m x 10mm diameter Fairlead: CNC billet alloy black anodised with laser etched logo Recommended Battery: 650 CCA minimum for winching Mounting Bolt Pattern: 10?? x 4.5?? ( 254mm x 114.3 ) Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm ) Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm ) Winch weight with synthetic rope attached: 19.5kg
? Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
PLEASE NOTE: The product video shows a snatch block pulley. This product is an optional extra and is NOT included in the winch package.

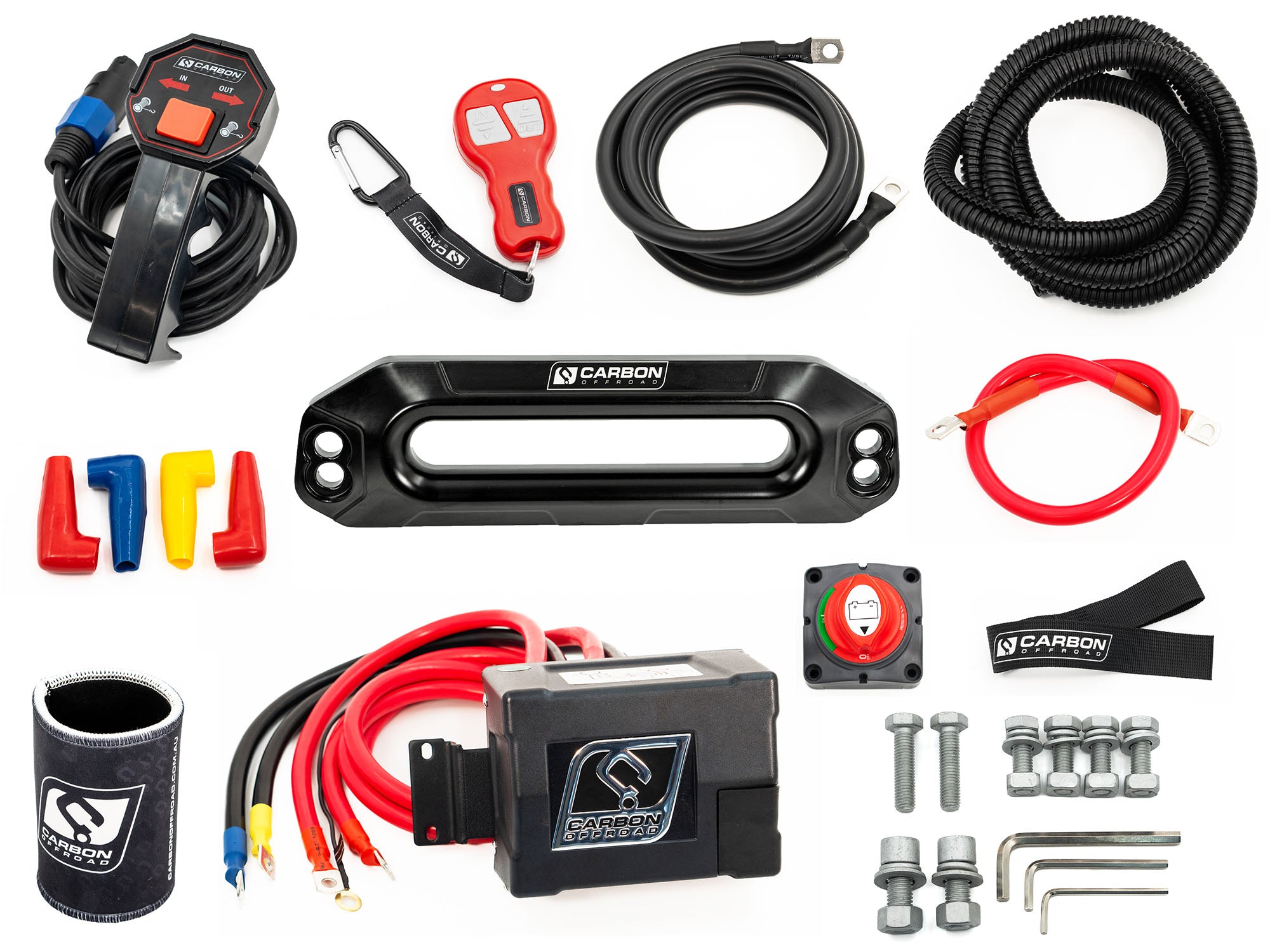

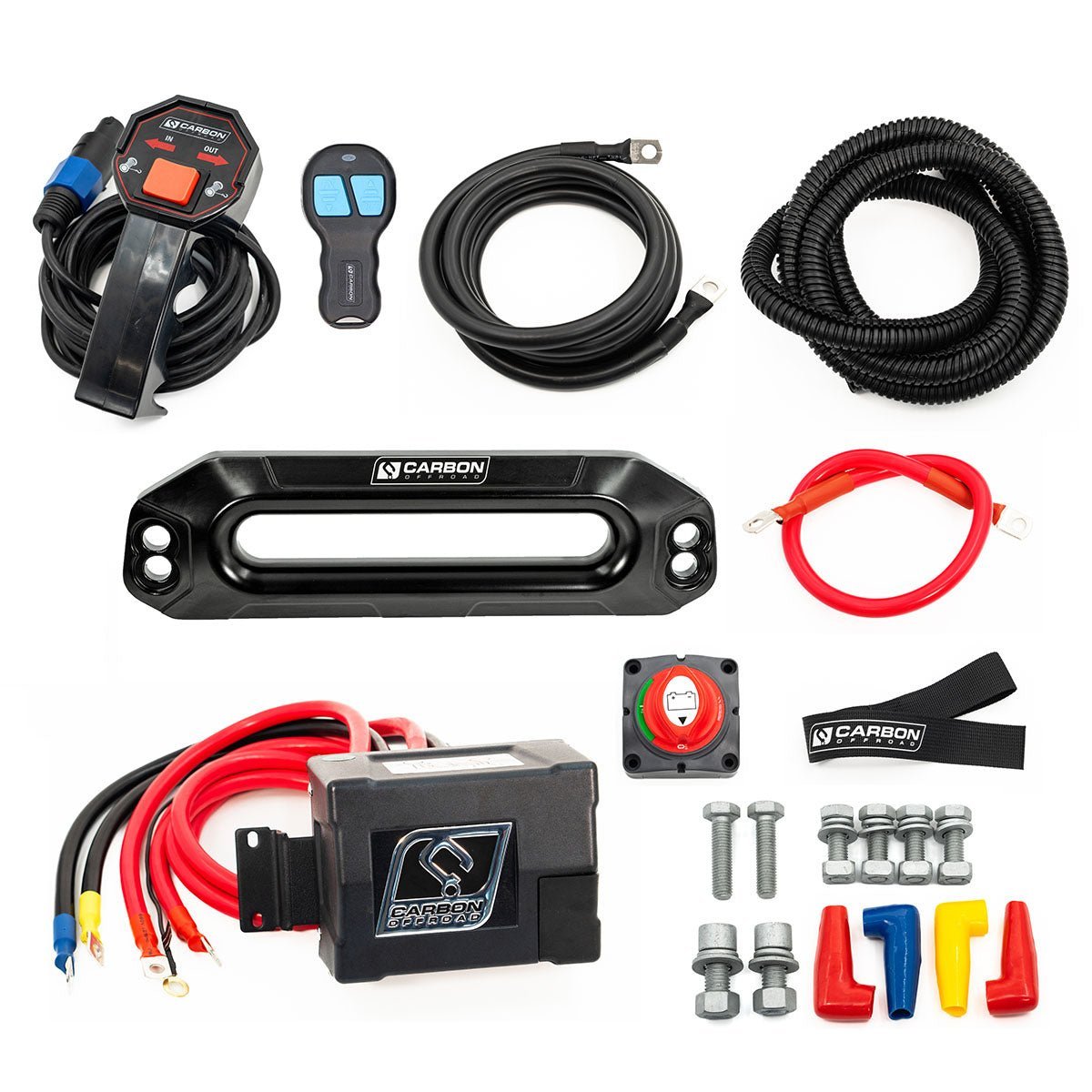

Carbon Winch 12k ? Package contents included in purchase price
Description
Quantity
Comment
Carbon Winch CW-12K_24V
1
24x10mm Synthetic Dyneema Rope
Control box 500amp
1
1pc 500A solenoid and battery cables + wireless remote
1 x long black battery cable
Hand remote control & Wireless remote control
Plug in and wireless operation
CNC Billet Black Plate Hawse Fairlead
Laser Etched Carbon Winches reversible Fairlead
Hardware bag
6sets
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts.
Owners Manual
1pc
Included
Carbon Winch Hook Kit
1pc
Included
Red Hook strap
1pc
Included
Electrical Cut out isolator switch Kit
1pc
Included
Winch Features
- Designed by an Australian offroad business for the harsh Aussie and international conditions
- IP68 rated fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms
- 12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
- 6.2HP series wound 12 volt electric motor (24 volt option)
- Wireless remote control unit with a lanyard - FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
- The rotating ring gear clutch design minimises freespool drag and completely eliminates clutch engagement issues.
- Electroplated planetary gear sets for long life
- 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles
- Multi Fit Fairlead - there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm
- Fully zinc electroplated internals for corrosion protection
- High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts
- Smooth ball bearing motor operation with a fully balanced motor armature for superior performance
- Superior holding power by utilising a hoist style brake unit mounted to the drum end plate which applies mechanical braking through the gear train with no heat generated in the drum. No contact to the drum means there is no risk of heat damage to the synthetic rope
- 4 position mounting for the control box bracket over the motor; over the drum, on top for flat mounting plates or in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch
What's in the Box
- 1 x Carbon 12K winch
- 24m x 10mm high strength synthetic winch rope
- 1 x Carbon winch hook
- 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
- 1 x Long black battery cable
- 1 x Wireless remote
- 1 x Wired remote
- 1 x Multifit CNC Alloy fairlead (offset and standard position)
- 4 x Mounting bolts
- 3 x Allen keys
- 2 x Additional longer mounting bolts (fairlead mounting)
- 2 x Additional nuts for remote mounting solenoid box
- 1 x Hook hand saver strap
- 1 x Carbon lanyard
- 1 x Carbon stubby cooler
- Installation manual
Technical Features
- Part number: CW-12k
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6.2HP series wound motor (24v option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 216:1
- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 64mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
- Packing Dimensions (L x W x H): 24.2x 14.5' x 9.8' (615 x 370 x 250mm)
- Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg.
12K Combo Deals
Carbon Offroad
Carbon 12K V.3 12000lb Winch Black Hook Installers Combo Deal
$834.00
$917.00
Carbon Winch Installers Combo Deal
Awesome Value!
Make your winch installation even easier
with a wired extension plug lead (1.4m) that you can mount under the bonnet or
behind the grill with the newly included lead bracket.
And simply mount the isolator switch with the Stainless Steel "L" bracket.
1 x Carbon V3 12 volt 12000lb Winch Package
1 x Wired Remote Extension Lead Plug (1.4mtrs)
1 x Stainless Steel Isolator Mounting Bracket (L shape)
1 x Stainless Steel Extension Lead Bracket (L shape)
Carbon Winch 12k 12000lb Electric 12v 4x4 Winch
Version 3 2023 Model - Now Available IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch
Get A Winch You Can Trust - Get a Carbon Winch
What do you get in the Winch Package kit?
Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
24m x 10mm high strength synthetic winch rope
1 x Carbon winch hook
1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
1 x long black battery cable
1 x Isolator switch
1 x battery to isolator switch cable
1 x Wireless remote
1 x Wired remote
1 x Multi-fit CNC Alloy fairlead (offset and standard position)
4 x Mounting bolts
3 x Allen keys
2 x additional longer mounting bolts (fairlead mounting)
2 x additional nuts for remote mounting solenoid box
1 x Hook hand saver strap
1 x Carbon lanyard
1 x Carbon stubby cooler
Installation manual Included, comprehensive, revised version for V3: link here: CW-12K V3 Install Guide
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
We also have on offer additional parts to ease the burden of the complexities of a winch installation as well. Wired plug extension and isolator switch bracket
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat.
You want the reliability of a winch that will perform when you need it to, time after time.
With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Buying a winch for the first time?
Check out our blog post with some great info: https://www.carbonoffroad.com.au/blog/carbon-winches-blog-news/buying-a-winch-for-the-first-time/
Get a winch you can trust - Get a Carbon Winch
Carbon Winches Warranty -
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty
Winch Design Features
Designed by an Australian offroad business for the harsh Aussie and international conditions
Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
6.2HP series wound 12 volt electric motor (24 volt option)
The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
Electroplated planetary gear sets for long life
3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
All other internals are fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch
Carbon Winch History
In conclusion you can be rest assured of the history of the brand. Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. After that, the Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
But in addition, we didn't stop there - We made the winch even better.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. A strong following in the Australian market developed with proven results across thousands of customers and 5 years on the market. A full redesign of the winch over a 6 month period between January and June 2021, results in the V2 CW-12K, a culmination of 5 years of using, supplying and receiving feedback from our customers and dealer network as we improved on many aspects of the original market proven winch design.
Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. Having developed a strong following in the Australian market with proven results across thousands of customers and 5 years on the market, we conducted a full redesign of the winch over a 6 month period between January and June 2021, the outcome was the Ver.2 CW-12K,which was the culmination of 5 years of using, supplying and receiving feedback from our customers and Dealer network as we improved on many aspects of the original market proven winch design.
Technical features
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
The main features include:
6.2 HP Series wound motor
216:1 ratio 3 stage planetary gearbox
Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
Rotating ring gear free spool clutch assembly which minimises free spool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
600amp sealed solenoid unit and wired handle remote control and wireless
Remote control unit
Specifications
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
Drum Diameter/Length: 64mm x 224mm
Synthetic Rope:24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 254mm x 114.3mm
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
12V DC performance specs (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
43.3(13.2)
70 amps
1/12,000 (5450)
2000 (910)
11.5 (3.5)
130 amps
2/9800 (4450)
4000 (1810)
9.2(2.8)
170 amps
3/8300 (3770)
6000 (2720)
7.9 (2.4)
220 amps
4/7200 (3270)
8000 (3630)
6.9 (2.1)
265 amps
10000 (4540)
5.6 (1.7)
320 amps
12000 (5450)
4.6 (1.4)
390 amps
Carbon Winch 12K Package contents included in purchase price
Description
Quantity
Comment
Carbon Winch CW-12K
1
24mx10mm Synthetic Rope
Control box 600 amp
1
1pc 600A solenoid and battery cables + wireless remote
1 x long black battery cable
Hand remote control & Wireless remote control
1 each
Plug in and wireless operation
CNC Billet 6061 T6 Alloy Black Hawse Fairlead
1
Laser Etched Carbon Winches two-position standard/offset fairlead
Hardware bag
6sets
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
Owners Manual
1
Included
Carbon Winch Hook Kit
1
Included
Red Hook strap
1
Included
Carbon Offroad
Carbon 12K V.3 12000lb Winch Red Hook Installers Combo Deal
$834.00
$917.00
Carbon Winch Installers Combo Deal
Awesome Value!
Make your winch installation even easier
with a wired extension plug lead (1.4m) that you can mount under the bonnet or
behind the grill with the newly included lead bracket.
And simply mount the isolator switch with the Stainless Steel "L" bracket.
1 x Carbon V3 12 volt 12000lb Winch Package
1 x Wired Remote Extension Lead Plug (1.4mtrs)
1 x Stainless Steel Isolator Mounting Bracket (L shape)
1 x Stainless Steel Extension Lead Bracket (L shape)
Carbon Winch 12k 12000lb Electric 12v 4x4 Winch
Version 3 2023 Model - Now Available IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch
Get A Winch You Can Trust - Get a Carbon Winch
What do you get in the Winch Package kit?
Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
24m x 10mm high strength synthetic winch rope
1 x Carbon winch hook
1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
1 x long black battery cable
1 x Isolator switch
1 x battery to isolator switch cable
1 x Wireless remote
1 x Wired remote
1 x Multi-fit CNC Alloy fairlead (offset and standard position)
4 x Mounting bolts
3 x Allen keys
2 x additional longer mounting bolts (fairlead mounting)
2 x additional nuts for remote mounting solenoid box
1 x Hook hand saver strap
1 x Carbon lanyard
1 x Carbon stubby cooler
Installation manual Included, comprehensive, revised version for V3: link here: CW-12K V3 Install Guide
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
We also have on offer additional parts to ease the burden of the complexities of a winch installation as well. Wired plug extension and isolator switch bracket
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat.
You want the reliability of a winch that will perform when you need it to, time after time.
With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Buying a winch for the first time?
Check out our blog post with some great info: https://www.carbonoffroad.com.au/blog/carbon-winches-blog-news/buying-a-winch-for-the-first-time/
Get a winch you can trust - Get a Carbon Winch
Carbon Winches Warranty -
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty
Winch Design Features
Designed by an Australian offroad business for the harsh Aussie and international conditions
Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
6.2HP series wound 12 volt electric motor (24 volt option)
The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
Electroplated planetary gear sets for long life
3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
All other internals are fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch
Carbon Winch History
In conclusion you can be rest assured of the history of the brand. Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. After that, the Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
But in addition, we didn't stop there - We made the winch even better.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. A strong following in the Australian market developed with proven results across thousands of customers and 5 years on the market. A full redesign of the winch over a 6 month period between January and June 2021, results in the V2 CW-12K, a culmination of 5 years of using, supplying and receiving feedback from our customers and dealer network as we improved on many aspects of the original market proven winch design.
Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. Having developed a strong following in the Australian market with proven results across thousands of customers and 5 years on the market, we conducted a full redesign of the winch over a 6 month period between January and June 2021, the outcome was the Ver.2 CW-12K,which was the culmination of 5 years of using, supplying and receiving feedback from our customers and Dealer network as we improved on many aspects of the original market proven winch design.
Technical features
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
The main features include:
6.2 HP Series wound motor
216:1 ratio 3 stage planetary gearbox
Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
Rotating ring gear free spool clutch assembly which minimises free spool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
600amp sealed solenoid unit and wired handle remote control and wireless
Remote control unit
Specifications
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
Drum Diameter/Length: 64mm x 224mm
Synthetic Rope:24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 254mm x 114.3mm
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
12V DC performance specs (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
43.3(13.2)
70 amps
1/12,000 (5450)
2000 (910)
11.5 (3.5)
130 amps
2/9800 (4450)
4000 (1810)
9.2(2.8)
170 amps
3/8300 (3770)
6000 (2720)
7.9 (2.4)
220 amps
4/7200 (3270)
8000 (3630)
6.9 (2.1)
265 amps
10000 (4540)
5.6 (1.7)
320 amps
12000 (5450)
4.6 (1.4)
390 amps
Carbon Winch 12K Package contents included in purchase price
Description
Quantity
Comment
Carbon Winch CW-12K
1
24mx10mm Synthetic Rope
Control box 600 amp
1
1pc 600A solenoid and battery cables + wireless remote
1 x long black battery cable
Hand remote control & Wireless remote control
1 each
Plug in and wireless operation
CNC Billet 6061 T6 Alloy Black Hawse Fairlead
1
Laser Etched Carbon Winches two-position standard/offset fairlead
Hardware bag
6sets
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
Owners Manual
1
Included
Carbon Winch Hook Kit
1
Included
Red Hook strap
1
Included
Carbon Offroad
Carbon 12K V.3 12000lb Winch Blue Hook Installers Combo Deal
$834.00
$917.00
Carbon Winch Installers Combo Deal
Awesome Value!
Make your winch installation even easier
with a wired extension plug lead (1.4m) that you can mount under the bonnet or
behind the grill with the newly included lead bracket.
And simply mount the isolator switch with the Stainless Steel "L" bracket.
1 x Carbon V3 12 volt 12000lb Winch Package
1 x Wired Remote Extension Lead Plug (1.4mtrs)
1 x Stainless Steel Isolator Mounting Bracket (L shape)
1 x Stainless Steel Extension Lead Bracket (L shape)
Carbon Winch 12k 12000lb Electric 12v 4x4 Winch
Version 3 2023 Model - Now Available IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch
Get A Winch You Can Trust - Get a Carbon Winch
What do you get in the Winch Package kit?
Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
24m x 10mm high strength synthetic winch rope
1 x Carbon winch hook
1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
1 x long black battery cable
1 x Isolator switch
1 x battery to isolator switch cable
1 x Wireless remote
1 x Wired remote
1 x Multi-fit CNC Alloy fairlead (offset and standard position)
4 x Mounting bolts
3 x Allen keys
2 x additional longer mounting bolts (fairlead mounting)
2 x additional nuts for remote mounting solenoid box
1 x Hook hand saver strap
1 x Carbon lanyard
1 x Carbon stubby cooler
Installation manual Included, comprehensive, revised version for V3: link here: CW-12K V3 Install Guide
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
We also have on offer additional parts to ease the burden of the complexities of a winch installation as well. Wired plug extension and isolator switch bracket
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat.
You want the reliability of a winch that will perform when you need it to, time after time.
With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Buying a winch for the first time?
Check out our blog post with some great info: https://www.carbonoffroad.com.au/blog/carbon-winches-blog-news/buying-a-winch-for-the-first-time/
Get a winch you can trust - Get a Carbon Winch
Carbon Winches Warranty -
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty
Winch Design Features
Designed by an Australian offroad business for the harsh Aussie and international conditions
Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
6.2HP series wound 12 volt electric motor (24 volt option)
The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
Electroplated planetary gear sets for long life
3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
All other internals are fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch
Carbon Winch History
In conclusion you can be rest assured of the history of the brand. Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. After that, the Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
But in addition, we didn't stop there - We made the winch even better.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. A strong following in the Australian market developed with proven results across thousands of customers and 5 years on the market. A full redesign of the winch over a 6 month period between January and June 2021, results in the V2 CW-12K, a culmination of 5 years of using, supplying and receiving feedback from our customers and dealer network as we improved on many aspects of the original market proven winch design.
Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. Having developed a strong following in the Australian market with proven results across thousands of customers and 5 years on the market, we conducted a full redesign of the winch over a 6 month period between January and June 2021, the outcome was the Ver.2 CW-12K,which was the culmination of 5 years of using, supplying and receiving feedback from our customers and Dealer network as we improved on many aspects of the original market proven winch design.
Technical features
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
The main features include:
6.2 HP Series wound motor
216:1 ratio 3 stage planetary gearbox
Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
Rotating ring gear free spool clutch assembly which minimises free spool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
600amp sealed solenoid unit and wired handle remote control and wireless
Remote control unit
Specifications
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
Drum Diameter/Length: 64mm x 224mm
Synthetic Rope:24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 254mm x 114.3mm
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
12V DC performance specs (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
43.3(13.2)
70 amps
1/12,000 (5450)
2000 (910)
11.5 (3.5)
130 amps
2/9800 (4450)
4000 (1810)
9.2(2.8)
170 amps
3/8300 (3770)
6000 (2720)
7.9 (2.4)
220 amps
4/7200 (3270)
8000 (3630)
6.9 (2.1)
265 amps
10000 (4540)
5.6 (1.7)
320 amps
12000 (5450)
4.6 (1.4)
390 amps
Carbon Winch 12K Package contents included in purchase price
Description
Quantity
Comment
Carbon Winch CW-12K
1
24mx10mm Synthetic Rope
Control box 600 amp
1
1pc 600A solenoid and battery cables + wireless remote
1 x long black battery cable
Hand remote control & Wireless remote control
1 each
Plug in and wireless operation
CNC Billet 6061 T6 Alloy Black Hawse Fairlead
1
Laser Etched Carbon Winches two-position standard/offset fairlead
Hardware bag
6sets
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
Owners Manual
1
Included
Carbon Winch Hook Kit
1
Included
Red Hook strap
1
Included
Carbon Offroad
Carbon 12K V.3 12000lb Winch Orange Hook Installers Combo Deal
$834.00
$917.00
Carbon Winch Installers Combo Deal
Awesome Value!
Make your winch installation even easier
with a wired extension plug lead (1.4m) that you can mount under the bonnet or
behind the grill with the newly included lead bracket.
And simply mount the isolator switch with the Stainless Steel "L" bracket.
1 x Carbon V3 12 volt 12000lb Winch Package
1 x Wired Remote Extension Lead Plug (1.4mtrs)
1 x Stainless Steel Isolator Mounting Bracket (L shape)
1 x Stainless Steel Extension Lead Bracket (L shape)
Carbon Winch 12k 12000lb Electric 12v 4x4 Winch
Version 3 2023 Model - Now Available IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch
Get A Winch You Can Trust - Get a Carbon Winch
What do you get in the Winch Package kit?
Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
24m x 10mm high strength synthetic winch rope
1 x Carbon winch hook
1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
1 x long black battery cable
1 x Isolator switch
1 x battery to isolator switch cable
1 x Wireless remote
1 x Wired remote
1 x Multi-fit CNC Alloy fairlead (offset and standard position)
4 x Mounting bolts
3 x Allen keys
2 x additional longer mounting bolts (fairlead mounting)
2 x additional nuts for remote mounting solenoid box
1 x Hook hand saver strap
1 x Carbon lanyard
1 x Carbon stubby cooler
Installation manual Included, comprehensive, revised version for V3: link here: CW-12K V3 Install Guide
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
We also have on offer additional parts to ease the burden of the complexities of a winch installation as well. Wired plug extension and isolator switch bracket
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat.
You want the reliability of a winch that will perform when you need it to, time after time.
With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Buying a winch for the first time?
Check out our blog post with some great info: https://www.carbonoffroad.com.au/blog/carbon-winches-blog-news/buying-a-winch-for-the-first-time/
Get a winch you can trust - Get a Carbon Winch
Carbon Winches Warranty -
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty
Winch Design Features
Designed by an Australian offroad business for the harsh Aussie and international conditions
Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.
12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
6.2HP series wound 12 volt electric motor (24 volt option)
The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
Electroplated planetary gear sets for long life
3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
All other internals are fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch
Carbon Winch History
In conclusion you can be rest assured of the history of the brand. Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. After that, the Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
But in addition, we didn't stop there - We made the winch even better.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. A strong following in the Australian market developed with proven results across thousands of customers and 5 years on the market. A full redesign of the winch over a 6 month period between January and June 2021, results in the V2 CW-12K, a culmination of 5 years of using, supplying and receiving feedback from our customers and dealer network as we improved on many aspects of the original market proven winch design.
Carbon Winches was designed, engineered and tested prior to market release by an Australian Offroad Business - KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all market options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability, toughness and has been tested in some of the harshest environments in Australia and overseas including the USA, Iceland and the Middle East.
Many other products on the market simply didn't prove worthy in the Australian Outback including some very popular world renowned brands, so we built our own. Having developed a strong following in the Australian market with proven results across thousands of customers and 5 years on the market, we conducted a full redesign of the winch over a 6 month period between January and June 2021, the outcome was the Ver.2 CW-12K,which was the culmination of 5 years of using, supplying and receiving feedback from our customers and Dealer network as we improved on many aspects of the original market proven winch design.
Technical features
Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
The main features include:
6.2 HP Series wound motor
216:1 ratio 3 stage planetary gearbox
Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
Rotating ring gear free spool clutch assembly which minimises free spool drag and completely eliminates clutch engagement issues.
Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
600amp sealed solenoid unit and wired handle remote control and wireless
Remote control unit
Specifications
Part number: CW-12K
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1
Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
Drum Diameter/Length: 64mm x 224mm
Synthetic Rope:24m x 10mm diameter
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Recommended Battery: 650 CCA minimum for winching
Mounting Bolt Pattern: 254mm x 114.3mm
Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
12V DC performance specs (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
43.3(13.2)
70 amps
1/12,000 (5450)
2000 (910)
11.5 (3.5)
130 amps
2/9800 (4450)
4000 (1810)
9.2(2.8)
170 amps
3/8300 (3770)
6000 (2720)
7.9 (2.4)
220 amps
4/7200 (3270)
8000 (3630)
6.9 (2.1)
265 amps
10000 (4540)
5.6 (1.7)
320 amps
12000 (5450)
4.6 (1.4)
390 amps
Carbon Winch 12K Package contents included in purchase price
Description
Quantity
Comment
Carbon Winch CW-12K
1
24mx10mm Synthetic Rope
Control box 600 amp
1
1pc 600A solenoid and battery cables + wireless remote
1 x long black battery cable
Hand remote control & Wireless remote control
1 each
Plug in and wireless operation
CNC Billet 6061 T6 Alloy Black Hawse Fairlead
1
Laser Etched Carbon Winches two-position standard/offset fairlead
Hardware bag
6sets
4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts. Spare nuts to use 6mm bolts in endplate for remote mount of control box on bullbar, allen keys.
Owners Manual
1
Included
Carbon Winch Hook Kit
1
Included
Red Hook strap
1
Included
12K Spare Parts
Carbon Offroad
Carbon Winches Australia 500amp Battery Isolator Switch - W...
$28.00
500 Amp Battery Isolator Switch complete with 4 x mounting bolts with nuts
Product Dimensions - 67mm x 67mm x 75mm
Carbon Offroad
Carbon Winches Wired Remote Control Plug Extension Kit -Sui...
$26.00
Carbon Winches Australia - Winch control box wired remote mounted plug extension lead to suit July 2021-On winch - V2 and V3
THIS WILL ONLY SUIT V2/V3 WINCHES, IF UNSURE PLEASE CALL TO CHECK
If you have hidden your control box inside your bullbar, or have a bumper replacement bullbar such as a GM Fab bar or Rhino bar and cannot easily access your control box to plug in the hand remote, use this product to remotely mount the plug, either on your bumper or inside your engine bay. Such a simple item makes plugging in your wired controller a breeze. One less stress when out on the track, as guaranteed, when the wired controller comes out, you will most likely be wanting to think about more important things like is my rig filling up with bog hole water as I try and plug this controller in!
Extension is approximately 1450mm long.
Carbon Offroad
Carbon Winches Australia 600amp Sealed Winch Solenoid 12 Volt
$70.00
Carbon Winches Australia Fully Sealed Solenoid - 600amp peak rating
Our solenoid is supremely reliable. With zero warranties or failures since its release, you can be sure this solenoid unit will do the job for your winching duties.
Carbon Offroad
Carbon Winches Wireless Remote Control kit 12V
$48.00
Carbon Winches Wireless Remote Control kit. Plug in replacement of the receiver box inside the control box with a matched remote controller.
